Item # FL50C, Compression Load Cells







Features  · Dimensional Drawing  · Specifications  · Mechanical Properties  · Performance Specs  · Electrical Specifications  · General Information

Features
  • Low Profile, Rugged, Compact & Lightweight
  • Low Deflection
  • High Frequency Dynamic Load Sensing
  • Pressure Compensating
  • Sealed Strain Gages
  • Counterbored Mounting Holes
  • Low Sensitivity to Extraneous Loads
  • High Static Overload




Dimensional Drawing

Dimensional Drawing



Specifications

Load Capacity

50,000 lb

Type of Flat Load Cells

Compression

Rated Output

2-mV/V (Nominal)
2-mV/V (Std. Output)

3-mV/V (Nominal)

3-mV/V (Std. Output)

Configuration

Dual Bridge
Single Bridge

Non-Linearity

General Purpose ±0.25% F.S.
Precision ±0.10% F.S.

Connector Type

Connector
Permanently Attached Cable

A - Diameter

1.500 in

B - Diameter

3-1/2 in

C - Diameter

4-7/8 in

D - Diameter

5-1/8 in

E - Length

6-7/16 in

F - Height

1-3/8 in

G - Width

3-3/4 in

H - Height

1-3/4 in

J - Length

1/16 in

K - Outside Diameter

13/32 in

k - Inside Diameter

9/32 in

Number of Hold Down Bolt Holes

4

L - Diameter

4-1/8 in

M - Length

3/16 in

N - Depth of Hole

1/4 in

Lifting Holes - Threads

NONE

Lifting Holes - BC. Diameter

NONE

Weight

7.0 lb

Material of Construction

Alloy Steel


Mechanical Properties



Performance Specs

Accuracy



     Non-Linearity

General Purpose ±0.25% FS
Precision ±0.10% FS

     Hysteresis

General Purpose ±0.15% FS
Precision ±0.10% FS

     Non-Repeatability

±0.05% FS

Environmental



     Compensated Range

60 to 150 ºF

     Effect on Zero

±0.0035% FS/°F

     Effect on Output

±0.0030% Load/°F (Nominal)

Electrical



     Excitation Voltage

15V AC or DC (Maximum)

     Bridge Resistance

350 Ohms (Nominal)

     Zero Balance1

±2% FS (Nominal)

     Insulation Resistance

10,000 Megaohms (Minimum)

Mechanical



     Safe Static Overload without Zero Shift

200%FS

     Safe Static Overload without Output Shift

200%FS

     Safe Static Overload without Structural Failure

250%FS
1 Prior to loading, it is necessary to initially/periodically null the zero load output to account for any residual offset.


Electrical Specifications

Receptacle

PT02H-10-6P

Mating Plug

PT06A-10-6S (SR)

     Function

Pin

     (+) Excitation

A

     (-) Excitation

D

     (+) Signal1

B

     (-) Signal2

C

Cable

#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)

     Function

Wire Code

     (+) Excitation

Red

     (-) Excitation

Black

     (+) Signal 3

Green

     (-) Signal 4

White
1 The signal leads are reversed.
2 The signal leads are reversed.
3 The signal leads are reversed.
4 The signal leads are reversed.


General Information
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960.

The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.

Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.

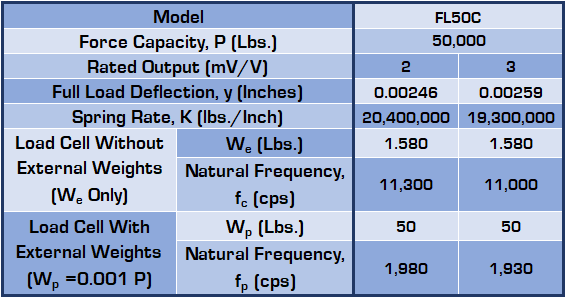

Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
