Item # FL10U, Universal Load Cells






Features  · Dimensional Drawing  · Specifications  · Mechanical Properties  · Performance Specs  · Electrical Specifications  · General Information

Features
  • Low Profile, Rugged, Compact & Lightweight
  • Low Deflection
  • High Frequency Dynamic Load Sensing
  • Pressure Compensating
  • Sealed Strain Gages
  • Counterbored Mounting Holes
  • Low Sensitivity to Extraneous Loads
  • High Static Overload


Dimensional Drawing

Dimensional Drawing


Specifications

Load Capacity
10,000 lb

Type of Flat Load Cells
Universal

Rated Output
2-mV/V (Nominal)
2-mV/V (Std. Output)
3-mV/V (Nominal)
3-mV/V (Std. Output)

Configuration
Dual Bridge
Single Bridge

Non-Linearity
General Purpose ±0.25% F.S.
Precision ±0.10% F.S.

Connector Type
Connector
Permanently Attached Cable

Hole Type
Threaded Loading Hole
Thru Hole

A - Diameter
1-1/16 in

B - Diameter
1-13/16 in

C - Diameter
3-3/16 in

D - Diameter
3-7/16 in

E - Length
4-15/32 in

F - Height
15/16 in

G - Width
2-15/16 in

H - Height
1 in

K - Outside Diameter
13/32 in

k - Inside Diameter
9/32 in

Number of Hold Down Bolt Holes
8

L - Diameter
2-7/16 in

M - Length
1/32 in

N - Depth of Hole
3/8 in

T - Hole
5/8-18UNF-2B
Thru Hole, 21/32"

Lifting Holes - Threads
NONE

Lifting Holes - BC. Diameter
NONE

Weight
1.7 lb

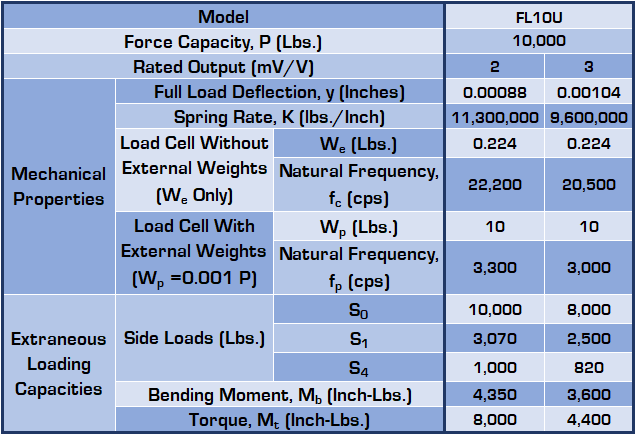

Mechanical Properties



Performance Specs

Accuracy


     Non-Linearity
General Purpose ±0.25% FS
Precision ±0.10% FS

     Hysteresis
General Purpose ±0.15% FS
Precision ±0.10% FS

     Non-Repeatability
±0.05% FS

Environmental


     Compensated Range
60 to 150 ºF

     Effect on Zero
±0.0035% FS/°F

     Effect on Output
±0.0030% Load/°F (Nominal)

Electrical


     Excitation Voltage
15V AC or DC (Maximum)

     Bridge Resistance
350 Ohms (Nominal)

     Zero Balance1
±2% FS (Nominal)

     Insulation Resistance
10,000 Megaohms (Minimum)

Mechanical


     Safe Static Overload without Zero Shift
200%FS

     Safe Static Overload without Output Shift
200%FS

     Safe Static Overload without Structural Failure
250%FS
1 Prior to loading, it is necessary to initially/periodically null the zero load output to account for any residual offset.


Electrical Specifications

Receptacle
PT02H-10-6P

Mating Plug
PT06A-10-6S (SR)

     Function
Pin

     (+) Excitation
A

     (-) Excitation
D

     (+) Signal
B

     (-) Signal
C

Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)

     Function
Wire Code

     (+) Excitation
Red

     (-) Excitation
Black

     (+) Signal
Green

     (-) Signal
White


General Information
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960.

The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.

Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.

Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
