Custom Load Pin Configurator
Item # :

Type
Bolt Db <= 2" <br> Non-Recessed Connector <br> (Type F)

Bolt Db <= 2"
Non-Recessed Connector
(Type F) 		Bolt Db <= 2" <br> Recessed Connector <br> (Type E)

Bolt Db <= 2"
Recessed Connector
(Type E) 		Pin Dp < 2" <br> Non-Recessed Connector <br> (Type B)

Pin Dp < 2"
Non-Recessed Connector
(Type B) 		Pin Dp < 2" <br> Recessed Connector <br> (Type A)

Pin Dp < 2"
Recessed Connector
(Type A) 		Pin Dp >= 2" <br> Non-Recessed Connector <br> (Type D)

Pin Dp >= 2"
Non-Recessed Connector
(Type D)
Pin Dp >= 2" <br> Recessed Connector <br> (Type C)

Pin Dp >= 2"
Recessed Connector
(Type C)

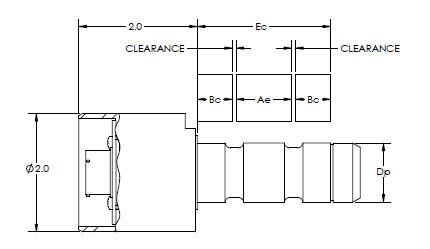

Drawing
<!--1-->&nbsp;

Pin Diameter (Dp) (in)
Please Specify
Available Range: 0.230 to 1.990 By 0.001
Clevis Width (Ec) (in)
Please Specify
Available Range: 1 to 25.000 By 0.001
Clevis Eye Width (Ae) (in)
Please Specify
Available Range: 0.438 to 1.814 By 0.001
Clevis Cheek Width (Bc) (in)
Please Specify
Available Range: 0.218 to 0.75 By 0.001
